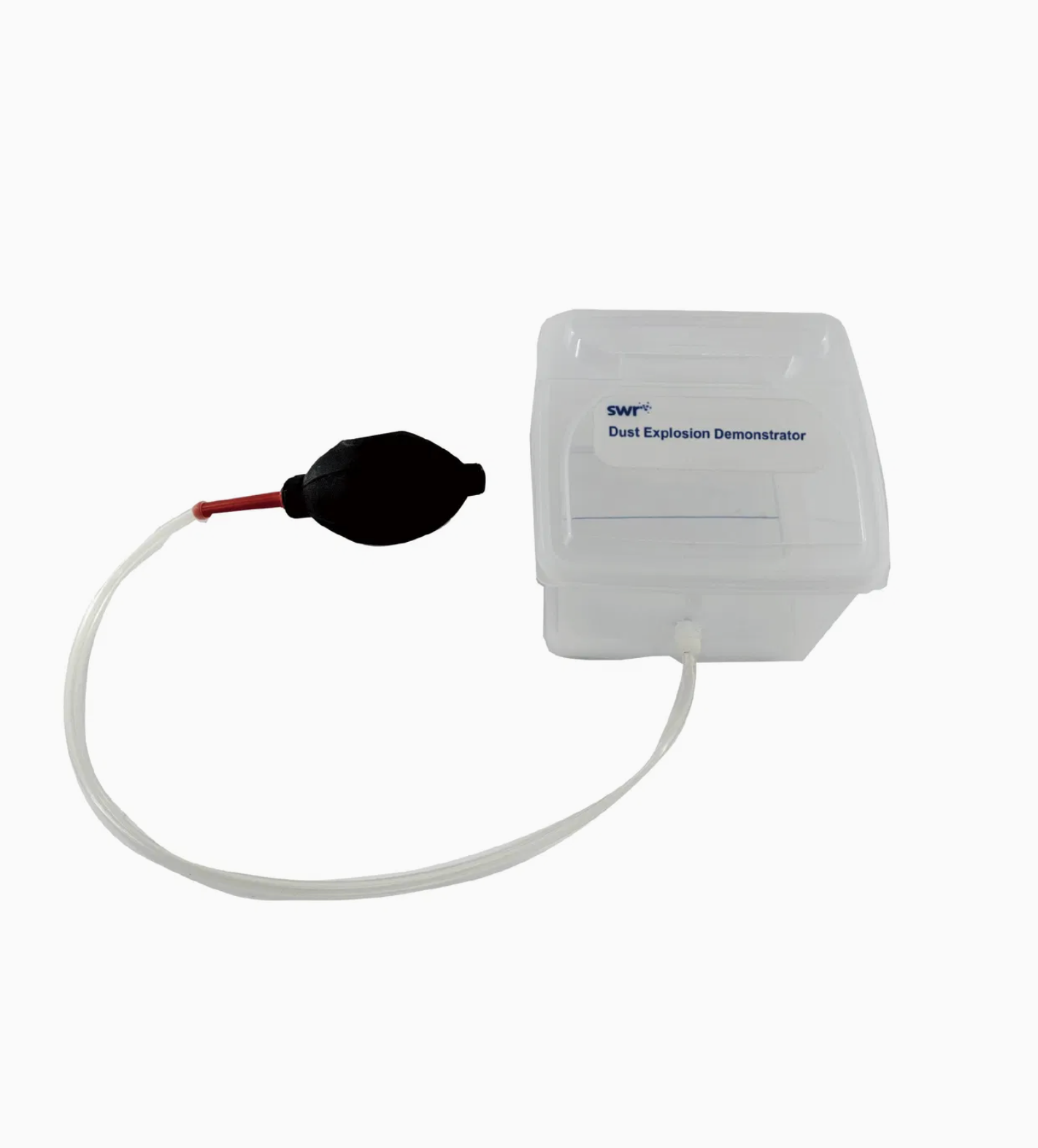

Dust Explosion Demonstrator for Educational School Science Labs

Description

The Dust Explosion Demonstrator is a classic educational tool designed to safely and dramatically illustrate the principles of rapid combustion and the dangers of industrial dust. This apparatus provides a visual and auditory demonstration of how finely divided combustible solids—which are otherwise stable in bulk form—can become explosive when suspended in air.

Technical Specifications

• Chamber Material: Heavy-duty, transparent acrylic or high-impact polycarbonate for 360° visibility and safety.

• Base: Stable, non-slip platform with integrated air injection system.

• Ignition Source: Built-in electric glow plug or a manual candle holder (depending on the model).

• Dispersion Method: Manual bellows or a pressurized air bulb connected to a dispersion nozzle.

• Dimensions: Approximately 25cm to 30cm in height for tabletop lab use.

How It Works: The Science of Surface Area

The demonstrator utilizes the “Fire Pentagon” (Fuel, Oxygen, Heat, Dispersion, and Confinement):

1. Fuel: A small amount of fine powder (e.g., lycopodium, cornstarch, or flour) is placed in the dispersion cup.

2. Dispersion: A quick puff of air creates a “dust cloud,” dramatically increasing the surface area-to-volume ratio of the fuel.

3. Ignition: The cloud passes over a heat source, causing near-instantaneous combustion.

4. Confinement: The rapid expansion of gases forces the friction-fit lid to pop off, demonstrating the pressure generated by a confined explosion.

Key Educational Benefits

• Visual Physics & Chemistry: Demonstrates reaction kinetics and the effect of particle size on chemical reaction rates.

• Industrial Safety Awareness: Teaches students about real-world hazards in grain elevators, coal mines, and woodworking shops.

• Interactive Learning: Provides a memorable “wow” factor that reinforces the relationship between oxygen and fuel.

Safety & Usage Protocols

• Controlled Explosion: Designed with a loose-fitting “pop-top” lid to vent pressure safely upward rather than shattering the chamber.

• Supervised Use: Must only be operated by a teacher or trained lab technician.

• PPE Required: Always wear Safety Goggles and maintain a 2-meter safety perimeter from students.

• Recommended Fuels: Lycopodium powder is highly recommended for its consistent particle size and reliable ignition at low moisture levels.

Kit Includes

• Transparent Explosion Chamber

• Dispersion Bellows / Hand Pump

• Ignition Source (Manual or Electric)

• Sample of Lycopodium Powder

• Full Teacher’s Guide and Experiment Manual
